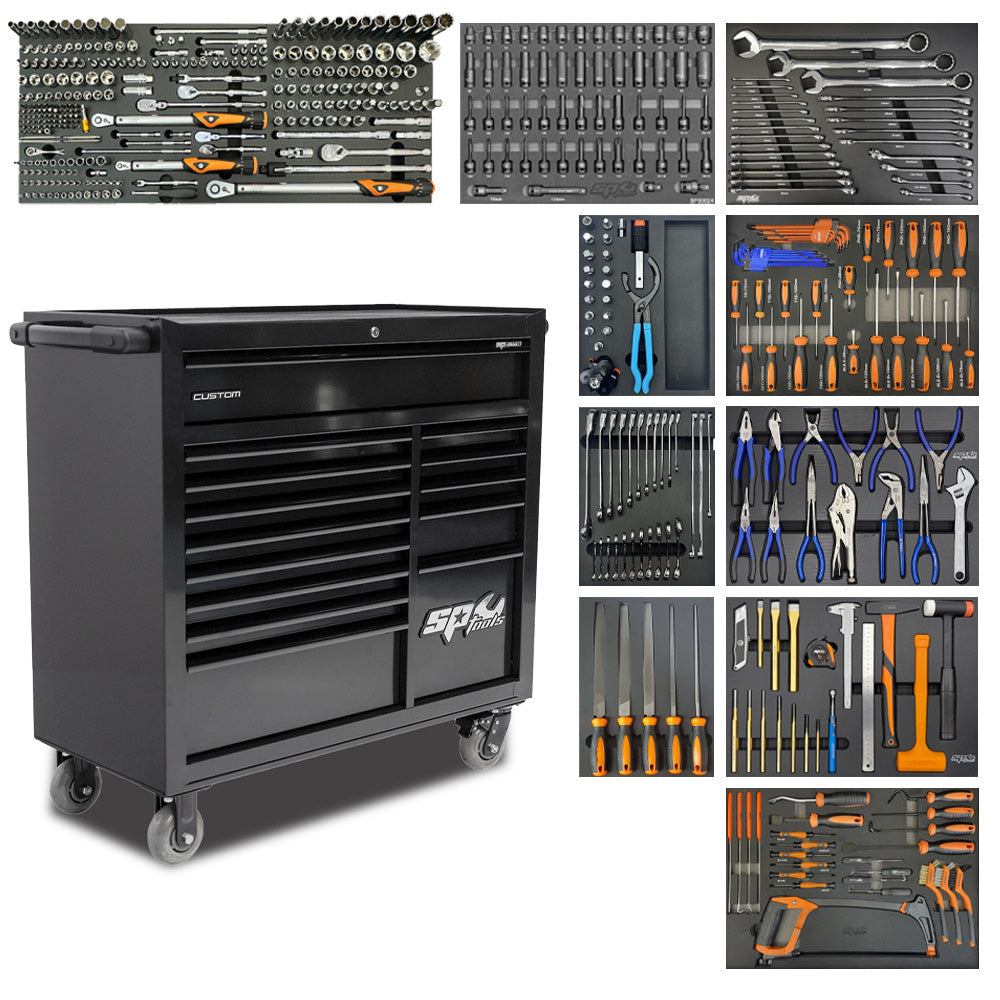

Tool Roller Cabinet SP Tools SP01150C Custom Series | Workshop Tool Trolley with 506 Pieces | 10 EVA Foam Trays and 3 Torque Wrenches | 14 Drawers

The SP Tools SP01150C Custom Series tool roller cabinet is a heavy-duty professional storage system engineered for rigorous automotive workshops and industrial service centers. Built with a double-wall cold-rolled steel construction, it provides exceptional chassis rigidity and a top workbench load capacity of up to 200 kg. The cabinet features 14 full-extension drawers (100% drawer opening) mounted on reinforced ball-bearing slides rated at 40 kg per drawer, with extra-deep lower drawers supporting up to 80 kg. Rolling on ultra-soft heavy-duty castors (two fixed, two swivel with total-lock brakes) and steered via a heavy-duty side handle, this roller cabinet offers outstanding maneuverability and stability across workshop floors.

The comprehensive 506-piece tool outfit is neatly housed in 10 high-density EVA two-tone foam trays, providing instant tool identification and maximum organization. The tooling includes an extensive 279-piece 1/4", 3/8", and 1/2" socket and ratchet module with 3 micrometer torque wrenches (5–25 Nm, 20–100 Nm, 40–200 Nm), a 56-piece Cr-Mo impact socket set, Quad Drive combination spanners and flare nut wrenches, Heavy Duty screwdrivers, workshop pliers with internal/external circlip pliers, pin punches and cold chisels with 3 hammers, files, scraper/hook set, hacksaw, and a dedicated oil service set. Protected by an all-steel central tumbler lock with two keys, this cabinet represents the ultimate mobile workstation backed by official SP Tools warranty.

Content of 14 drawers:

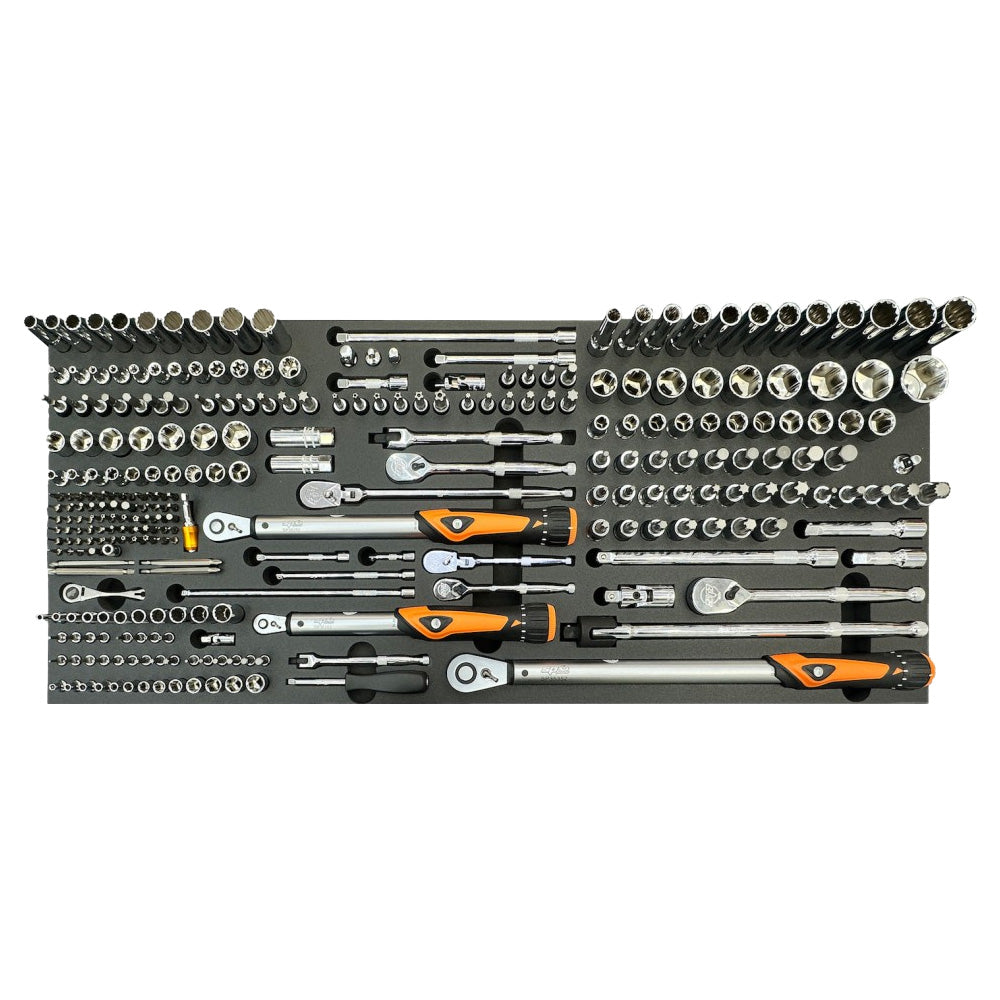

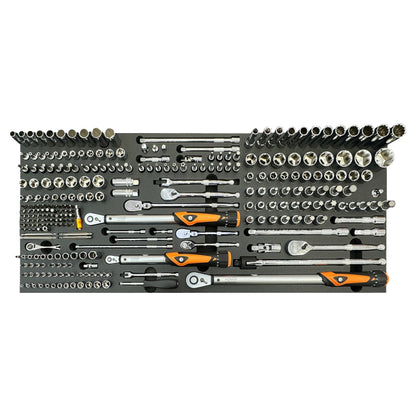

Drawer 1 (Tray 1) - 1/4", 3/8", 1/2" Sockets, Accessories & 3 Torque Wrenches SP Tools SP00777 (279 Pieces)

• 3 Precision Micrometer Torque Wrenches: 1/4" 5-25 Nm (SP35152, length 290 mm), 3/8" 20-100 Nm (SP35252, length 400 mm), and 1/2" 40-200 Nm (SP35352, length 517 mm) with micrometer scale and magnifying lens.
• Ratchets & Handles: Sealed-head 90T ratchets with short swing arc 1/4" (SP21385) and 3/8" (SP22385); 1/4" bit ratchet 60T (SP39600); breaker bar flex handles 1/4" 150 mm (SP21313) and 3/8" 200 mm (SP22313); 1/4" spinner handle 150 mm (SP21312).
• 1/4" Sockets & Accessories: 6-pt standard 4 to 14 mm; 12-pt deep 4 to 13 mm; wobble extension bar 250 mm; standard extension bars 50, 100, 150 mm; universal joint; bit sockets Inhex (3-8 mm), Torx (T8-T40), Torx Plus (TP10-TP25), Torx Slotted (TS10-TS25).
• 3/8" Sockets & Accessories: 6-pt standard 6 to 22 mm; 12-pt deep 10 to 19 mm; E-Torx E4 to E20; magnetic spark plug sockets 12-pt 14 mm and 16 mm (length 64 mm); extension bars 75, 150, 250 mm; universal joint; bit sockets Inhex (4-10 mm), Torx (T27-T55), Torx Plus (TP27-TP55), Torx Slotted (TS27-TS55).
• 1/2" Sockets & Accessories: 6-pt standard 10 to 36 mm; 12-pt deep 10 to 24 mm; extension bars 75, 125, 250 mm; universal joint; step-up/down adaptors 1/4"F×3/8"M, 3/8"F×1/4"M, 3/8"F×1/2"M, 1/2"F×3/8"M; 55 mm bit sockets Inhex (6-17 mm), Torx (T27-T70), Spline (M10-M16), Ribe (M8-M14).
• 1/4" Bit Set & Magnetic Bit Holder: Phillips (PH1-PH3, including 90 mm long bits), Pozidriv (PZ1-PZ3), Inhex (H2-H8), Square (S0-S3), TS Slotted Torx (TS8-TS40), Spline (M5-M8), Torx (T7-T40), Torx Tamperproof (T7H-T40H), Spanner (U6-U10), Slotted SL (3-6.5 mm), 1/4" bit adapter, and 60 mm magnetic bit holder.

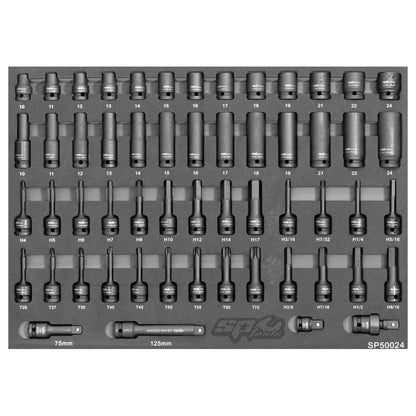

Drawer 2 (Tray 2) - 1/2" Cr-Mo Impact Socket Set SP Tools SP50024 (56 Pieces)

• 1/2" Standard 6-pt Cr-Mo Impact Sockets (13 pcs): 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24 mm.
• 1/2" Deep 6-pt Cr-Mo Impact Sockets (13 pcs): 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24 mm.
• 1/2" Cr-Mo Inhex Impact Driver Sockets (9 pcs): 4, 5, 6, 7, 8, 10, 12, 14, 17 mm.
• 1/2" Cr-Mo Torx Impact Driver Sockets (9 pcs): T25, T27, T30, T40, T45, T50, T55, T60, T70.
• 1/2" Cr-Mo Impact Accessories: Impact extension bars 75 mm and 125 mm, impact adapter 3/8"F × 1/2"M, and 1/2" impact ball universal joint.

Drawer 3 (Tray 3) - Quad Drive Combination Spanners & Flare Nut Wrenches SP Tools SP50013EU (26 Pieces)

• Quad Drive Combination Spanners (22 pcs): 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 27, 30, and 32 mm featuring anti-slip fastener protection profile.
• Flare Nut Brake Line Spanners (4 pcs): 10×11 mm, 12×13 mm, 14×17 mm, and 19×22 mm.

Drawer 4 (Tray 4) - Heavy-Duty Screwdrivers & L-Key Sets SP Tools SP00533 (38 Pieces)

• Heavy-Duty Premium Phillips Screwdrivers (6 pcs): PH2×38 mm (stubby), PH0×75 mm, PH1×80 mm, PH2×100 mm, PH2×150 mm, PH3×150 mm.
• Heavy-Duty Premium Slotted Screwdrivers (6 pcs): 6.5×38 mm (stubby), 3.0×75 mm, 5.5×100 mm, 6.5×100 mm, 6.0×150 mm, 8.0×150 mm.
• Heavy-Duty Torx Tamperproof Screwdrivers (8 pcs): T8×75 mm, T10×100 mm, T15×100 mm, T20×100 mm, T25×100 mm, T27×100 mm, T30×150 mm, T40×150 mm.
• 9-pc Metric Ball Drive Hex Key Set (SP34501): 1.5, 2, 2.5, 3, 4, 5, 6, 8, and 10 mm with magnetic ball tips.
• 9-pc Torx Key Set (SP34507): T10, T15, T20, T25, T27, T30, T40, T45, and T50.

Drawer 5 (Tray 5) - Workshop Pliers & Circlip Pliers SP Tools SP50075 (13 Pieces)

• High-Leverage Combination Pliers 200 mm.
• High-Leverage Long Nose Pliers 200 mm (SP32108) and Bent Long Nose Pliers 200 mm (SP32158).
• High-Leverage Heavy-Duty Diagonal Cutters 200 mm (SP32208).
• Curved Jaw Locking Pliers 250 mm (SP32603).
• Water Pump Adjustable Joint Pliers 250 mm (SP32402).
• Premium Chrome Wide-Jaw Adjustable Wrench 250 mm (SP18067).
• Long Reach Mechanical Pliers 275 mm Straight 0° (SP32162) and Bent 45° (SP32163).
• 4-pc Circlip Plier Set 175 mm: Straight Internal, Bent Internal, Straight External, Bent External.

Drawer 6 (Tray 6) - Hammers, Punches, Chisels & Precision Measuring Tools SP Tools SP00503 (19 Pieces)

• Mechanics Hammer 500 g with shock-absorbing moulded handle (SP30199).
• Dead Blow Hammer 450 g / 14 oz (SP30216).
• Shot-filled Soft/Hard Head Hammer 35/40 mm (SP30406).
• 7-pc Pin Punch Set: 2×115 mm, 3×125 mm, 4×150 mm, 5×165 mm, 6×180 mm, 8×180 mm, and 10×180 mm.
• 3-pc Cold Chisel Set: 12×150 mm, 20×200 mm, and 24×200 mm.
• Retractable Folding Utility Knife (SP30851).
• Telescopic Magnetic Pick-Up Tool 2.3 kg capacity (SP31503).
• Stainless Steel Pocket Vernier Caliper 150 mm / 0-6" (SP35607).
• Stainless Steel Workshop Ruler 300 mm / 12" (SP35213).
• Locking Steel Tape Measure 3 m × 16 mm (SP35199).

Drawer 7 (Tray 7) - Scrapers, Hooks, Precision Screwdrivers & Hacksaw SP Tools SP00507 (24 Pieces)

• 6-pc Precision Mini Screwdriver Set (SP34005): Slotted 2.0, 2.5, 3.0 mm; Phillips PH000, PH00, PH0.
• 6-pc Heavy-Duty Scraper & Seal Remover Set (SP30865).
• 4-pc Precision Hook & Pick Set (SP30802 / SP30843): Straight awl, 45°, 90°, Full hook.
• 2-pc Door Upholstery Trim Clip Remover Set (SP30863).
• 3-pc Mini Wire Brush Set (SP30890): Nylon, Brass, Stainless Steel.
• Professional Alloy Hacksaw 300 mm / 12" with soft-grip handle (SP35105).

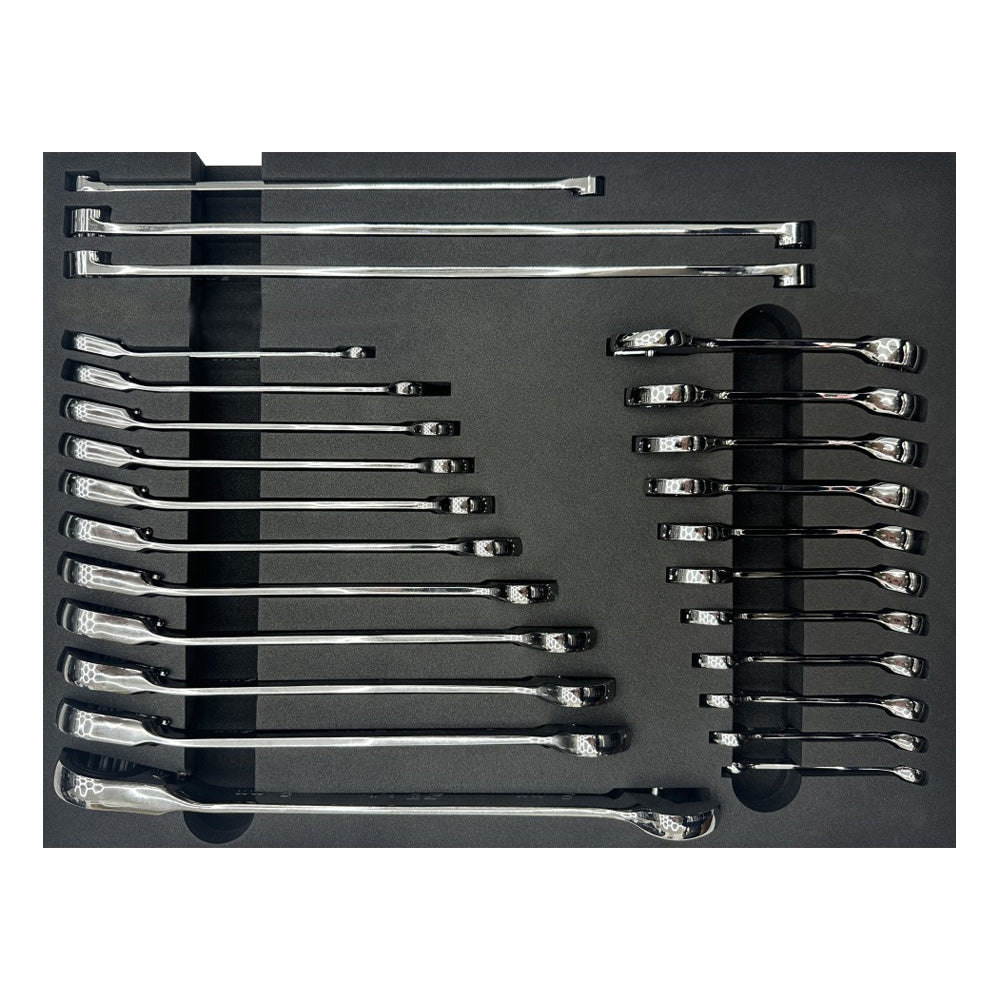

Drawer 8 (Tray 8) - GearDrive Reversible Ratcheting Wrenches & Stubby Spanners SP Tools SP00514 (25 Pieces)

• GearDrive Reversible Ratcheting Spanners (12 pcs): 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, and 21 mm.
• Stubby Combination Spanners (10 pcs): 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 mm for tight confined spaces.
• Straight Double Ring Spanners (3 pcs): 8×10 mm, 12×14 mm, and 13×15 mm.

Drawer 9 (Tray 9) - Workshop File Set SP Tools SP00565 (5 Pieces)

• Flat File Bastard Cut (SP36035F).
• Hand Millsaw File Bastard Cut (SP36035M).
• Half Round File Second Cut (SP36035H).
• Round File Bastard Cut (SP36035R).
• Square File Second Cut (SP36035S).

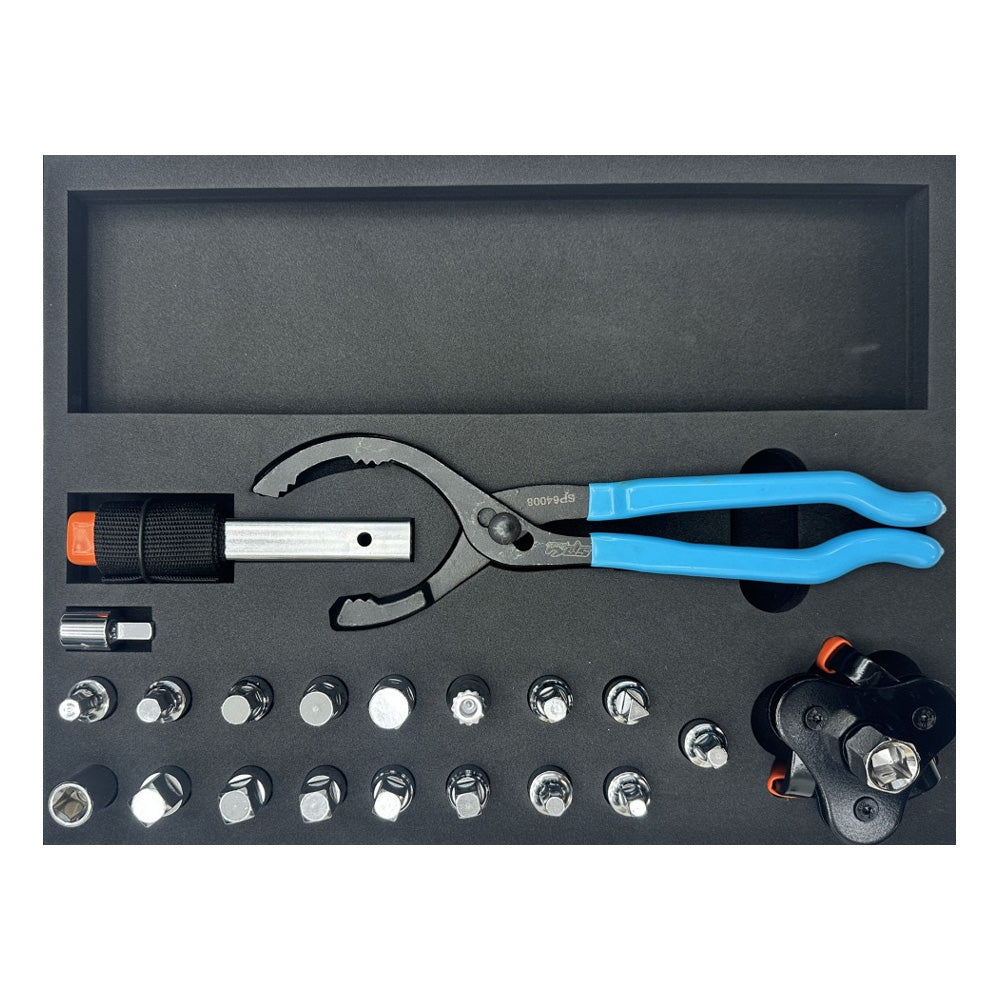

Drawer 10 (Tray 10) - Oil Service Specialized Set SP Tools SP00577 (21 Pieces)

• 18-pc 3/8" Drive Oil Drain Sump Plug Key Set (SP20215).
• Heavy-Duty Locking Oil Filter Pliers (SP64008).
• Heavy-Duty Reinforced Nylon Strap Oil Filter Wrench (SP64010).
• 3-Prong Reversible Self-Locking Oil Filter Wrench (SP64000).

Drawer 11 - Empty Storage Drawer (Power Tools / Chemical Reserve)

• Storage compartment with 40 kg load rating.
• Reinforced full-extension ball-bearing slides.
• Ideal storage space for cordless power tools, air tools, or automotive chemical sprays.

Drawer 12 - Empty Storage Drawer (Power Tools / Chemical Reserve)

• Storage compartment supporting up to 40 kg with 100% full extension.
• Smooth-running slides with positive detent latches.
• Space for specialized testing instruments or diagnostic gear.

Drawer 13 - Empty Storage Drawer (Hardware & Consumables Reserve)

• Heavy-duty storage drawer with 40 kg capacity.
• Cold-rolled steel chassis construction resistant to torsion.
• Fully locked via central tumbler key lock.

Drawer 14 - Deep XXL Bottom Drawer (Heavy Equipment Reserve up to 80 kg)

• Extra-deep bottom drawer with reinforced double slides supporting up to 80 kg.
• Heavy-duty storage for impact wrenches, hydraulic pullers, battery chargers, or gas cylinders.
• Engineered for the heaviest workshop tools and bulky accessories.

Marka SP Tools (SP Tools Europe) to wiodący globalny producent profesjonalnych narzędzi ręcznych, pneumatycznych oraz pancernych wózków i szaf warsztatowych. Od ponad 40 lat SP Tools dostarcza innowacyjne rozwiązania dla branży motorsportu, lotnictwa oraz profesjonalnych serwisów mechanicznych na całym świecie. Produkty SP Tools wyróżniają się niezrównaną wytrzymałością, opatentowanymi systemami Quad Drive, ergonomicznym wykonaniem oraz dożywotnią gwarancją na narzędzia ręczne. Wybór SP Tools w oficjalnej dystrybucji GGM Tools to gwarancja najwyższego standardu inżynieryjnego i bezawaryjnej pracy w każdych warunkach.

Do the drawers feature a safety latch to prevent accidental opening while moving?

Yes, every drawer in the SP Tools Custom Series roller cabinet is fitted with an integrated positive detent/latching mechanism that prevents accidental opening when rolling over uneven workshop floors. Furthermore, the entire unit is secured by an all-steel central tumbler lock.

Which torque wrenches are included in the 506-piece outfit?

The cabinet is equipped with 3 independent SP Tools micrometer click-type torque wrenches featuring an enlarged convex scale lens: 1/4" (5–25 Nm), 3/8" (20–100 Nm), and 1/2" (40–200 Nm), covering the entire automotive torque spectrum.

What is the load rating for the individual drawers in the Custom Series cabinet?

Standard drawers have a heavy-duty load rating of 40 kg each, while the extra-deep lower XXL drawers feature dual reinforced ball-bearing slides supporting up to 80 kg.

Can this roller cabinet be expanded with an SP Tools top chest?

Yes, the SP01150C Custom Series features a reinforced top surface rated for up to 200 kg and is fully compatible with modular SP Tools top chests and side hitch cabinets.
