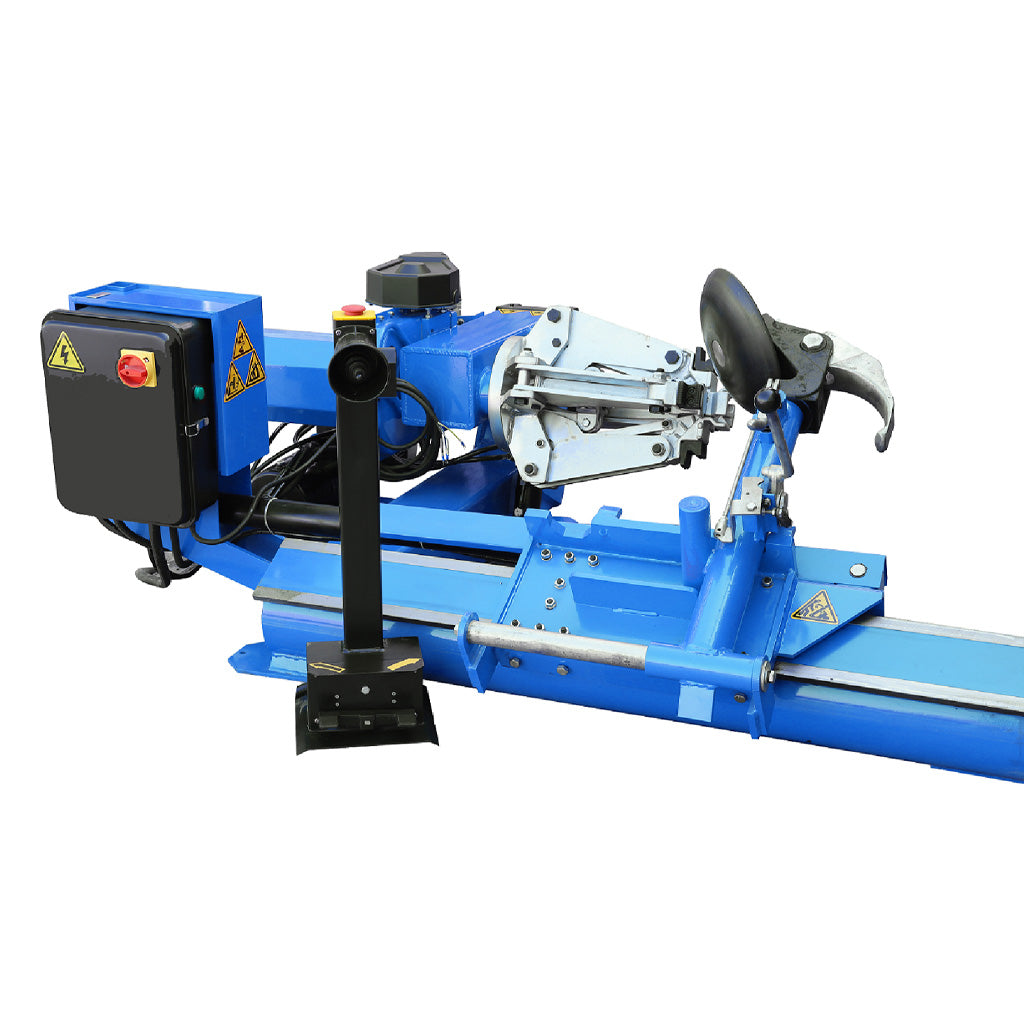

• Montażownica do opon ciężarowych ATC26 TRUCK – niebieska maszyna z ramieniem montażowym i panelem sterowniczym.

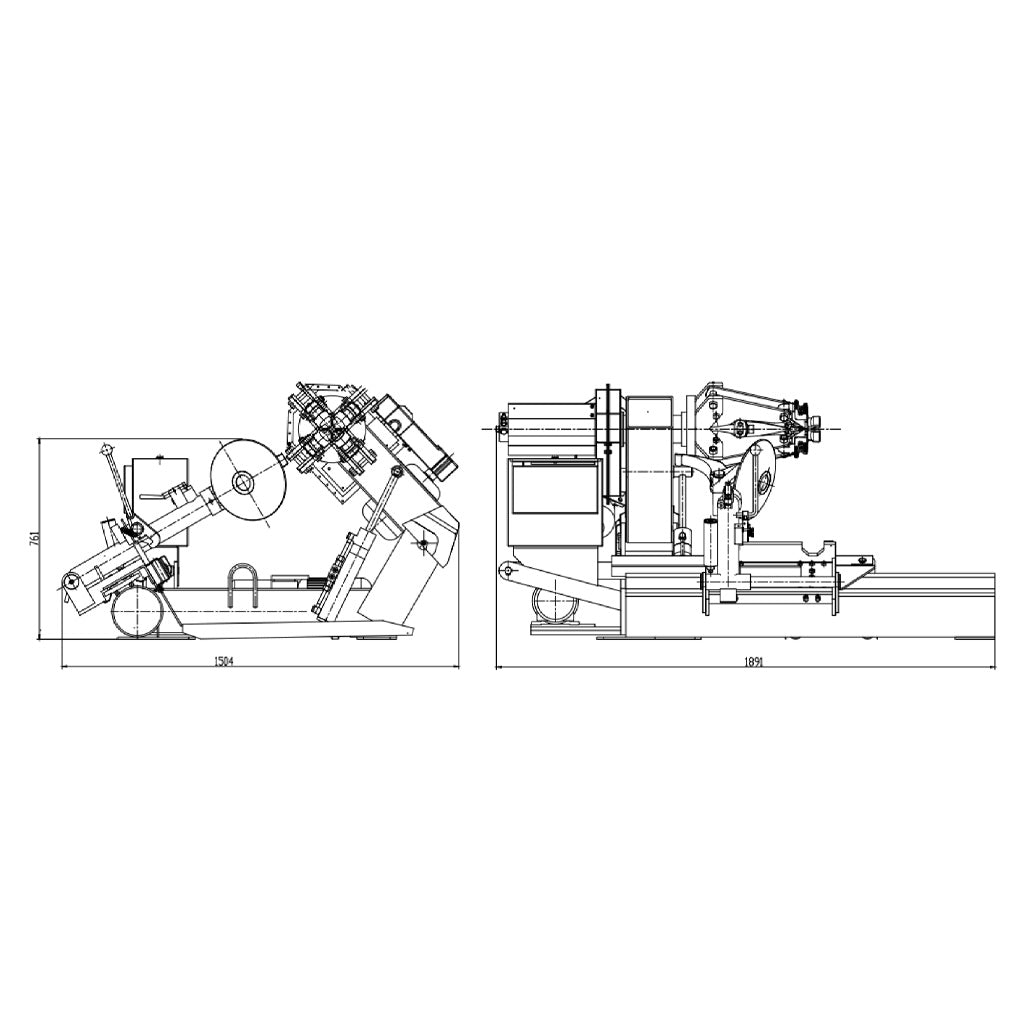

  • Montażownica do opon ciężarowych ATC26 TRUCK – rysunek techniczny prezentujący dokładne wymiary gabarytowe urządzenia.

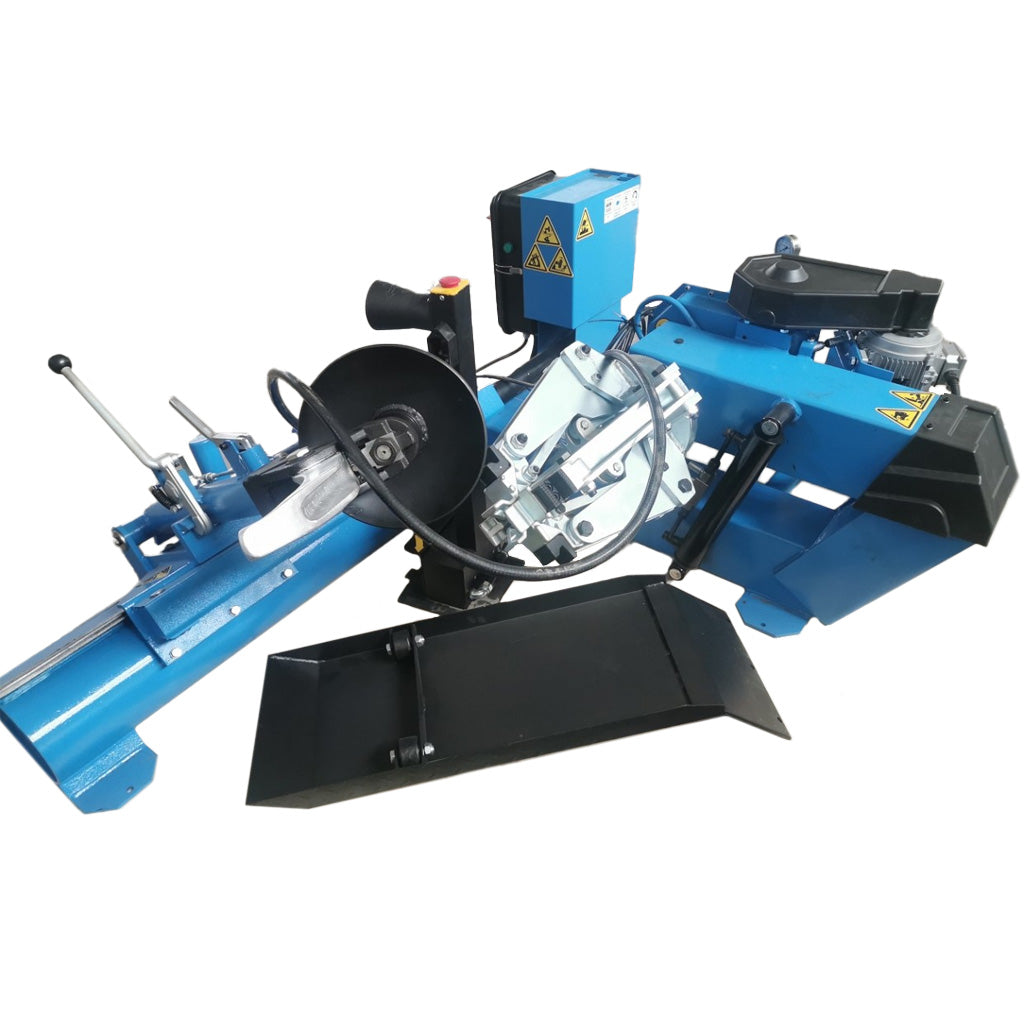

  • Montażownica do opon ciężarowych ATC26 TRUCK – widok od frontu z leżącą czarną rampą najazdową.

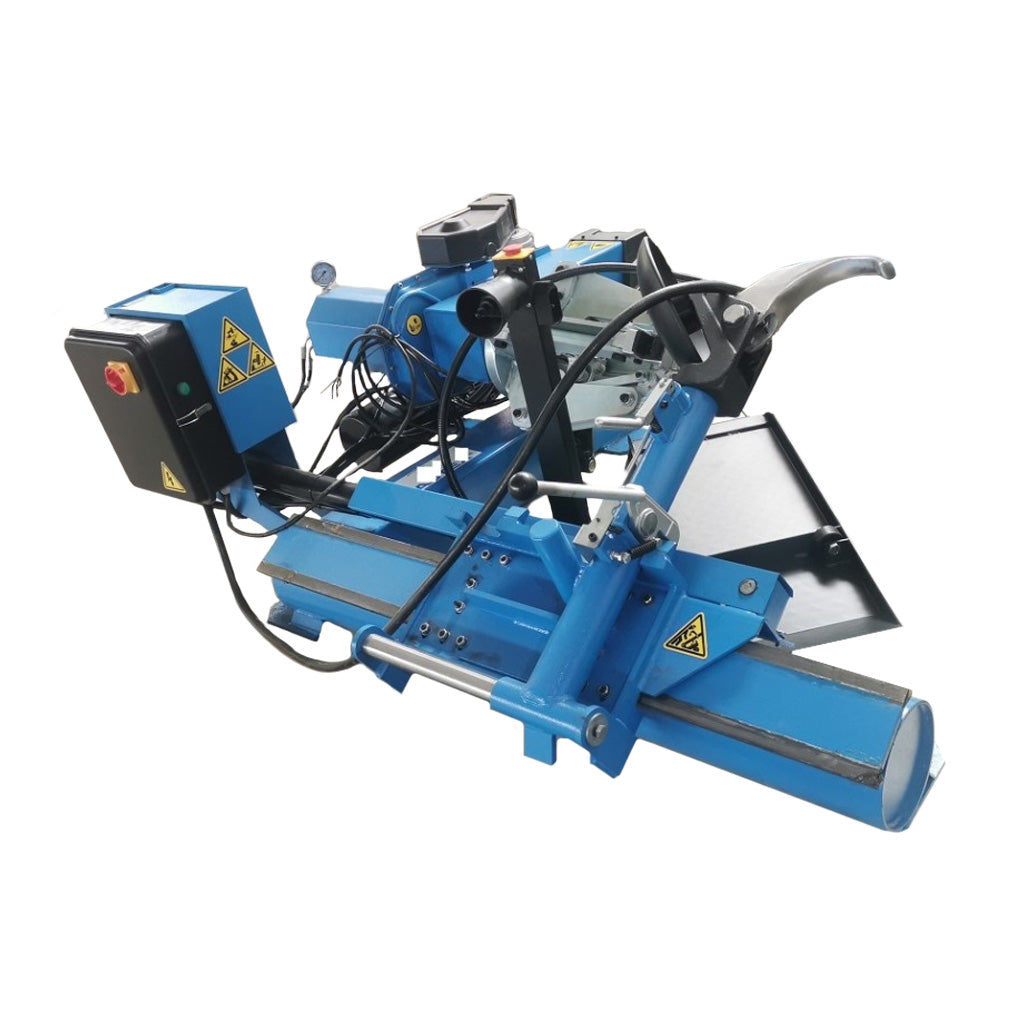

  • Montażownica do opon ciężarowych ATC26 TRUCK – konstrukcja niebieskiej maszyny wulkanizacyjnej pod kątem.

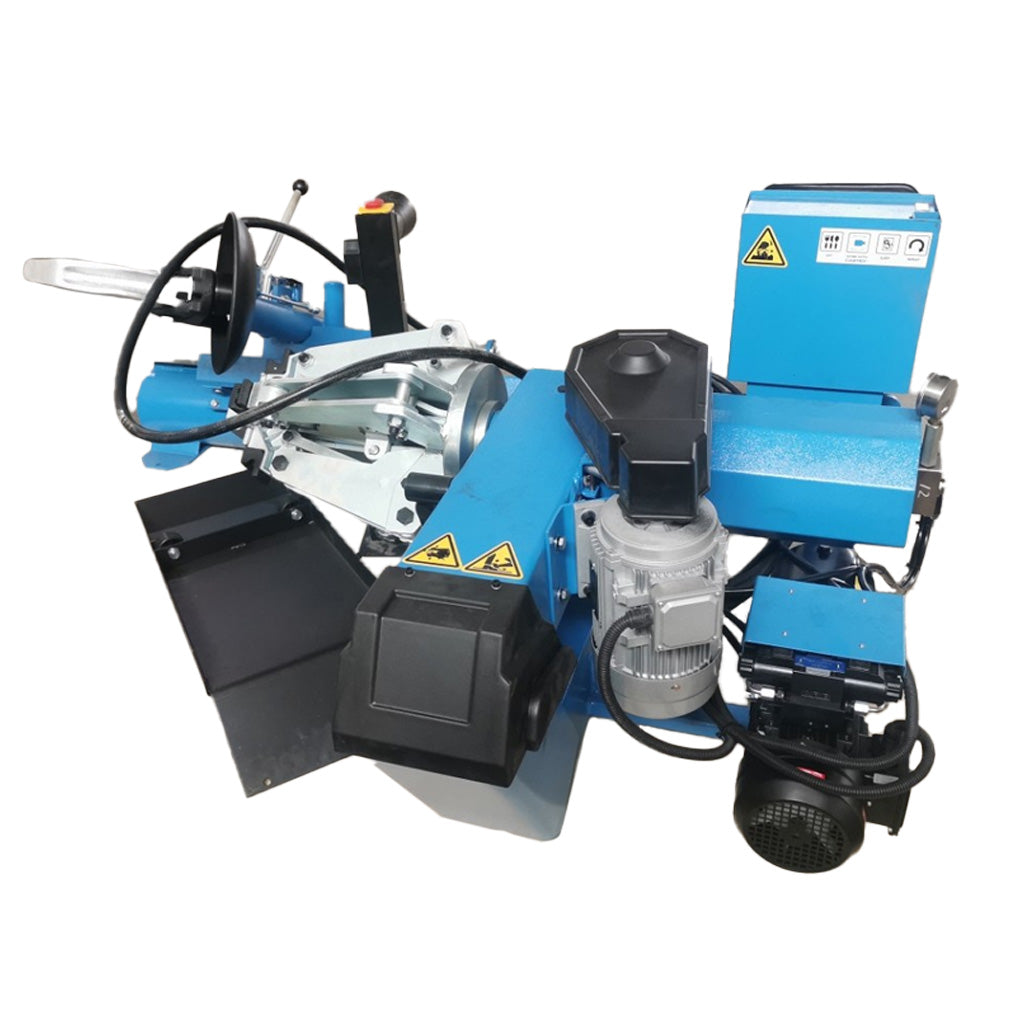

  • Montażownica do opon ciężarowych ATC26 TRUCK – widok z tyłu przedstawiający silnik elektryczny oraz układ hydrauliczny.
1 5

ATLANTIC TECHNIK

Truck Tyre Changer ATC26 TRUCK | Range 14"–26" | 1600 mm | ATLANTIC TECHNIK

Truck Tyre Changer ATC26 TRUCK | Range 14"–26" | 1600 mm | ATLANTIC TECHNIK

Price excl. VAT
12.030,00 zł / pcs
Price incl. VAT 23%
14.796,90 zł / pcs
Companies from the EU can place an order with a 0% VAT rate. During the checkout process, at the payment stage, you need to enter your VAT number (EU VAT).
Shipping cost calculated at checkout.

Truck Tyre Changer ATC26 TRUCK – Professional Machine for Demanding Workshops

The Truck Tyre Changer ATC26 TRUCK by ATLANTIC TECHNIK is designed for mounting tyres on lorries, buses and agricultural machinery. Chuck range 14"–26", maximum wheel diameter 1600 mm, hydraulic drive for jaws and lifting arm, mobile cable manipulator – safe and efficient work on the largest wheels.

Advantages

  • Solid and robust construction – designed for intensive use in heavy vehicle workshops
  • Mobile cable control manipulator – convenient operation from any position
  • Maximum wheel diameter up to 1600 mm – handles truck, agricultural and industrial wheels
  • Maximum chuck diameter up to 26" – wide rim compatibility
  • High-quality mechanical and hydraulic components – reliability and long service life
  • Safe 24V operating voltage – stable and secure control system
  • Hydraulically driven lifting arm and jaws – precise and smooth operation
  • Wide jaw adjustment range – flexible adaptation to different rim types

Technical Data

ModelATC26 TRUCK
Maximum chuck26"
Minimum chuck14"
Maximum rim width780 mm
Maximum wheel diameter1600 mm
Number of jaws4 pcs.
Main pump power1.5 kW
Additional pump power2.2 kW
Power supply110/220/380V
Operating pressure130 bar
Width1504 mm
Length1891 mm
Height761 mm
Weight520 kg
ManufacturerATLANTIC TECHNIK

Frequently Asked Questions

Which vehicles is the ATC26 TRUCK suitable for?

The ATC26 TRUCK is designed for lorries, buses, agricultural and industrial machinery. It handles wheels up to 1600 mm in diameter and chuck sizes from 14" to 26".

How does the hydraulic jaw drive work?

Jaws and lifting arm are hydraulically driven by two pumps (1.5 kW + 2.2 kW) at 130 bar operating pressure, ensuring smooth and precise movement even with heavy truck tyres.

What is the mobile cable manipulator?

The mobile cable manipulator is a cable-operated control panel allowing the operator to control the machine from various positions around the wheel, improving safety and convenience.

What power supply is required?

The machine supports 110V, 220V and 380V. The control system operating voltage is a safe 24V.

Why does the machine have 4 jaws?

4 jaws ensure even and stable gripping of the rim – the standard for professional truck tyre changers, guaranteeing safe operation.
