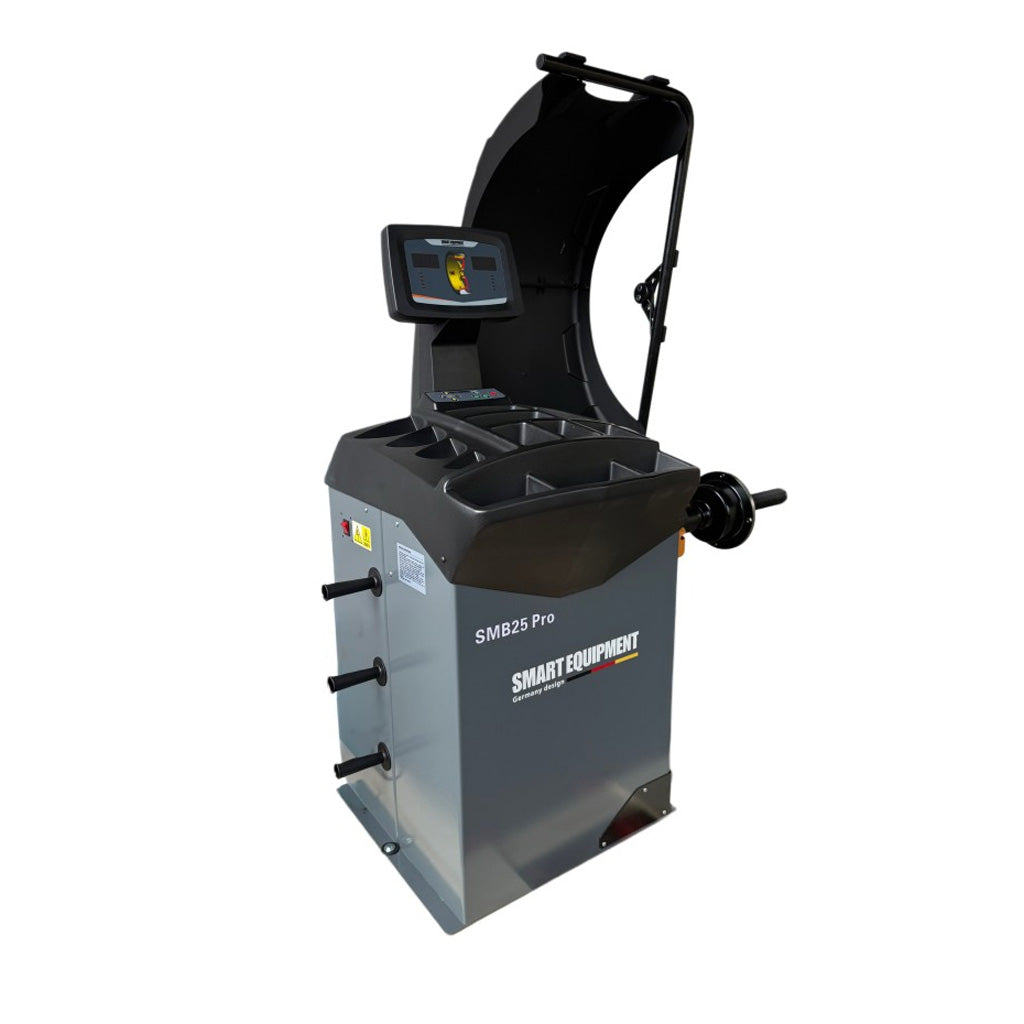

• SMB25 PRO wheel balancer – automatic machine in a gray housing with a raised black wheel cover and display.

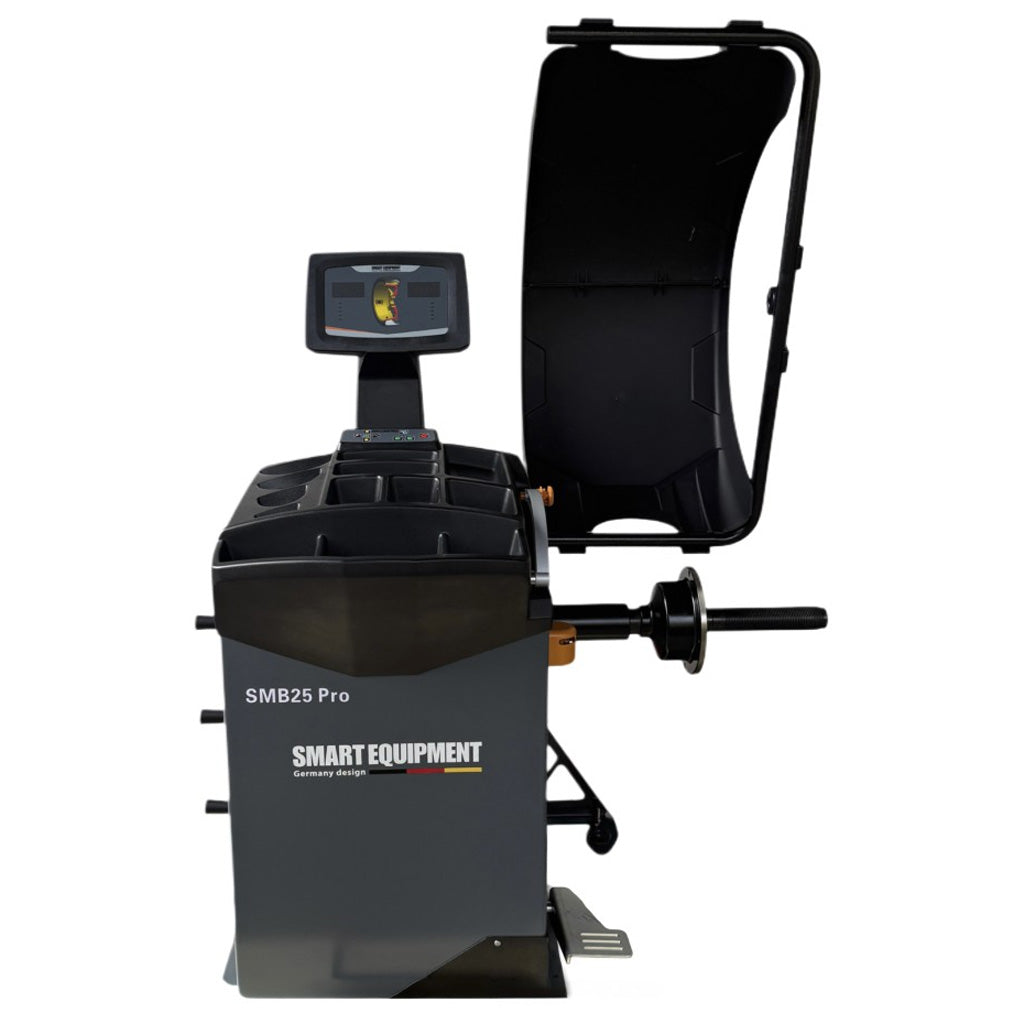

  • SMB25 PRO wheel balancer - tire balancing device with a visible 40 mm spindle and brake pedal, front view.

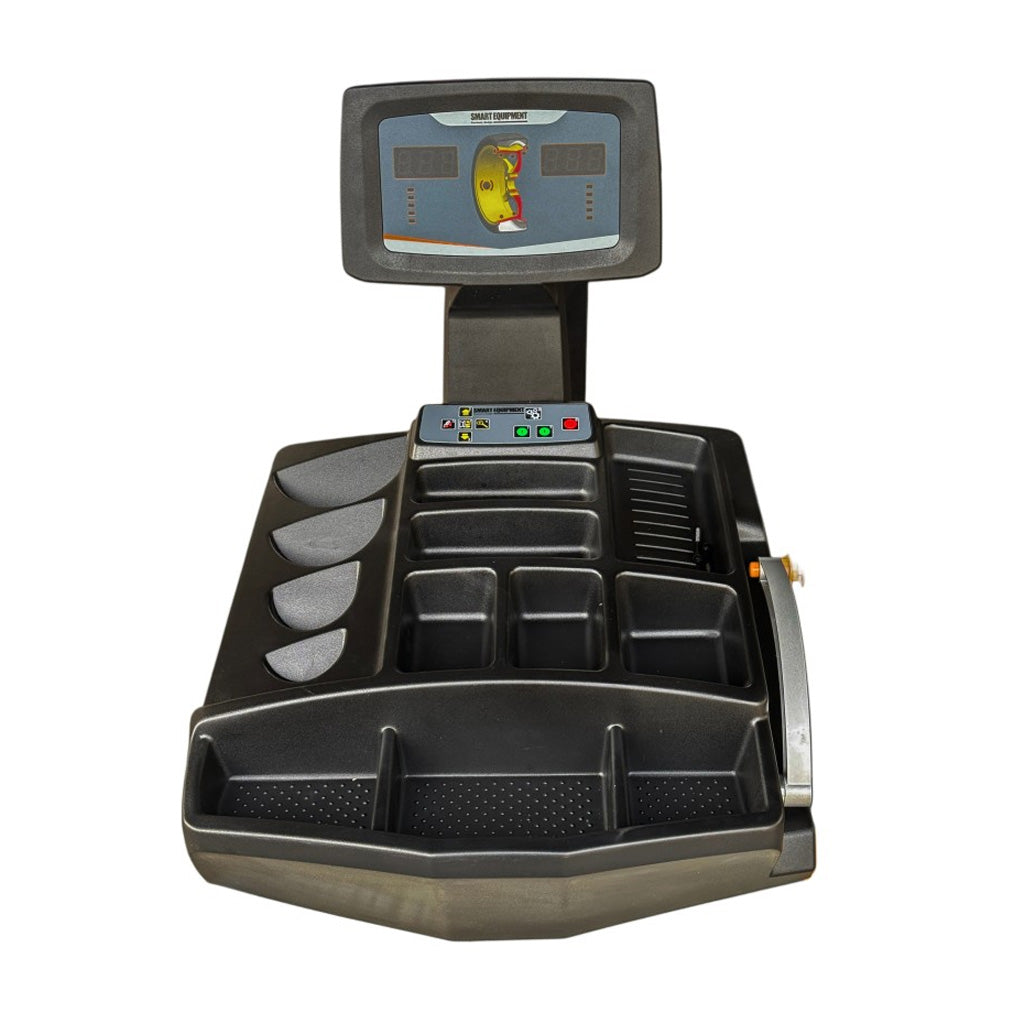

  • SMB25 PRO wheel balancer - close-up of the top cover with compartments for weights and the control panel with display.

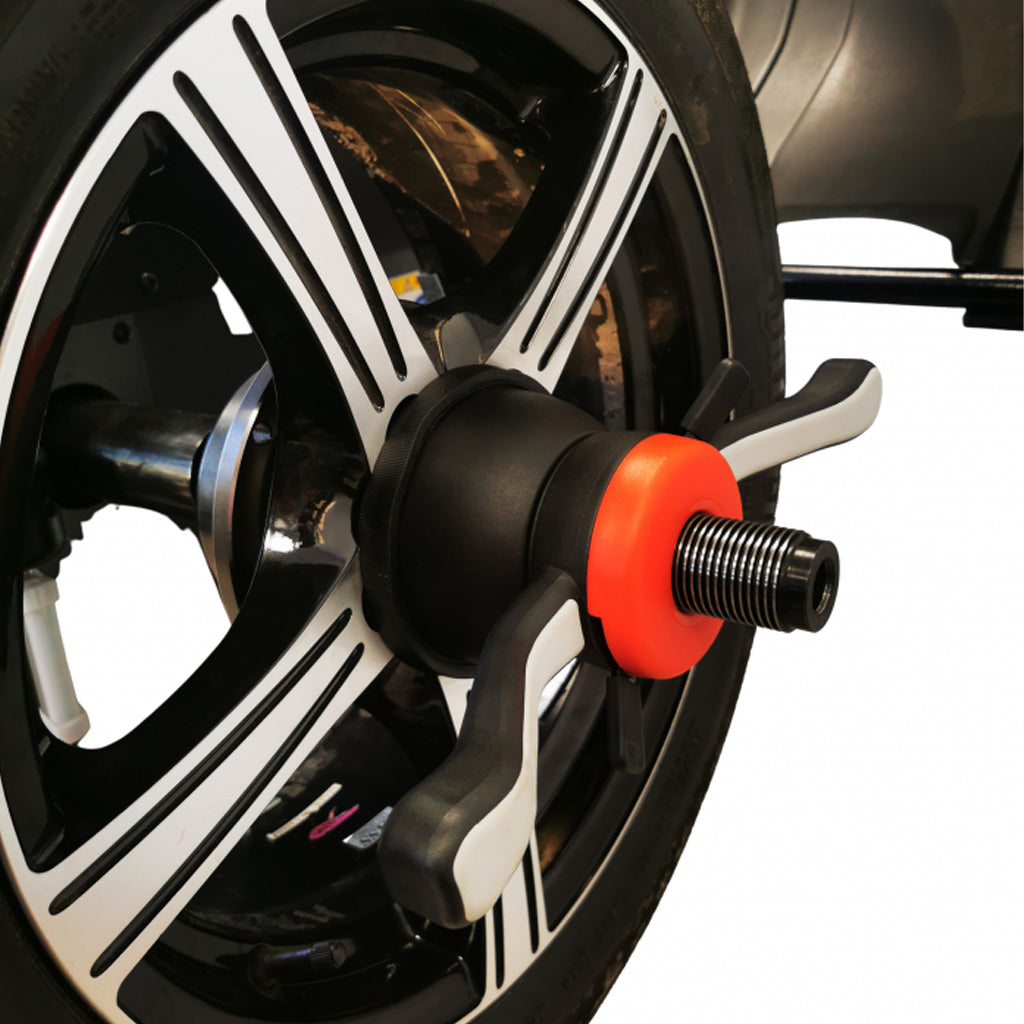

  • SMB25 PRO wheel balancer - close-up of a wheel with an aluminum rim mounted on a spindle using a quick-clamp chuck.

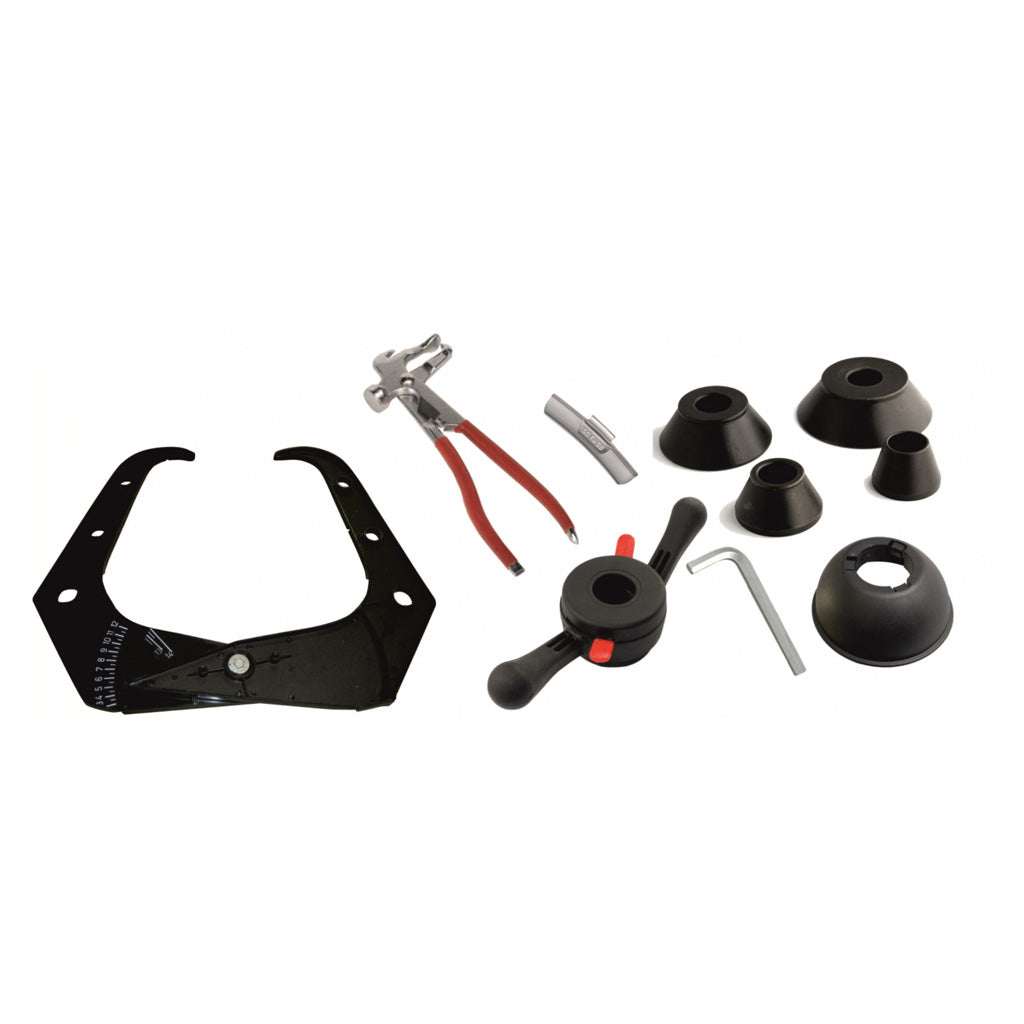

  • SMB25 PRO wheel balancer – standard equipment set including cones, pliers, compasses and quick-clamping chuck.

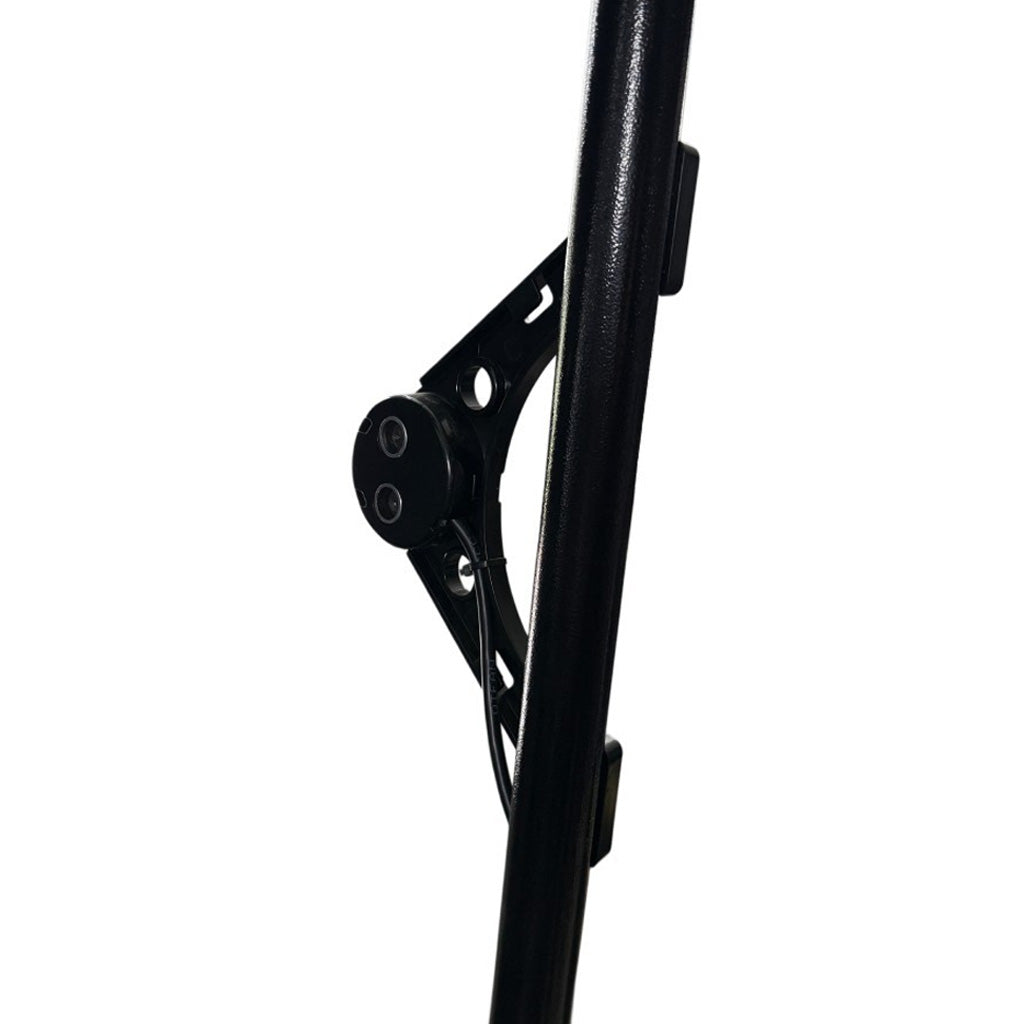

  • SMB25 PRO wheel balancer - close-up of the black sonar sensor mounted on the metal arm of the machine.

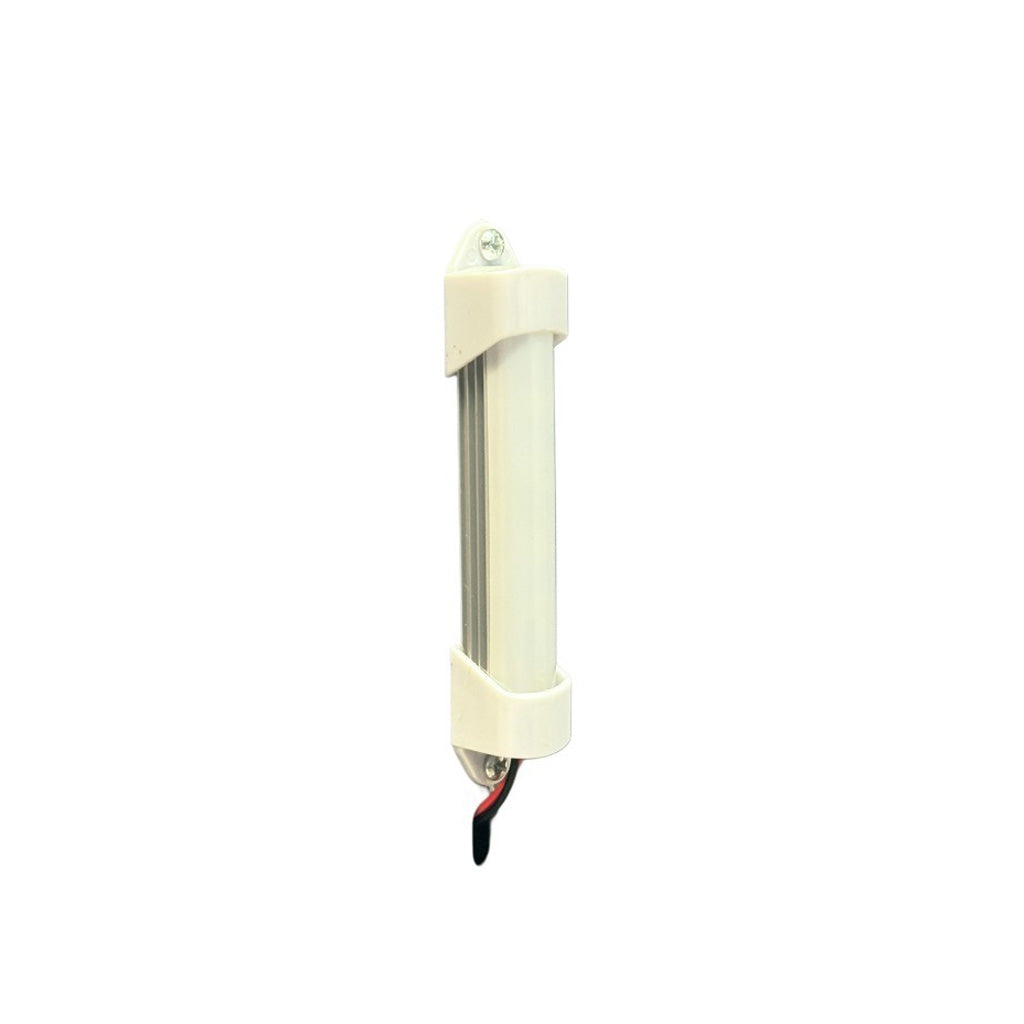

  • SMB25 PRO wheel balancer - close-up of the oblong LED rim lighting lamp in a bright housing with a cable.

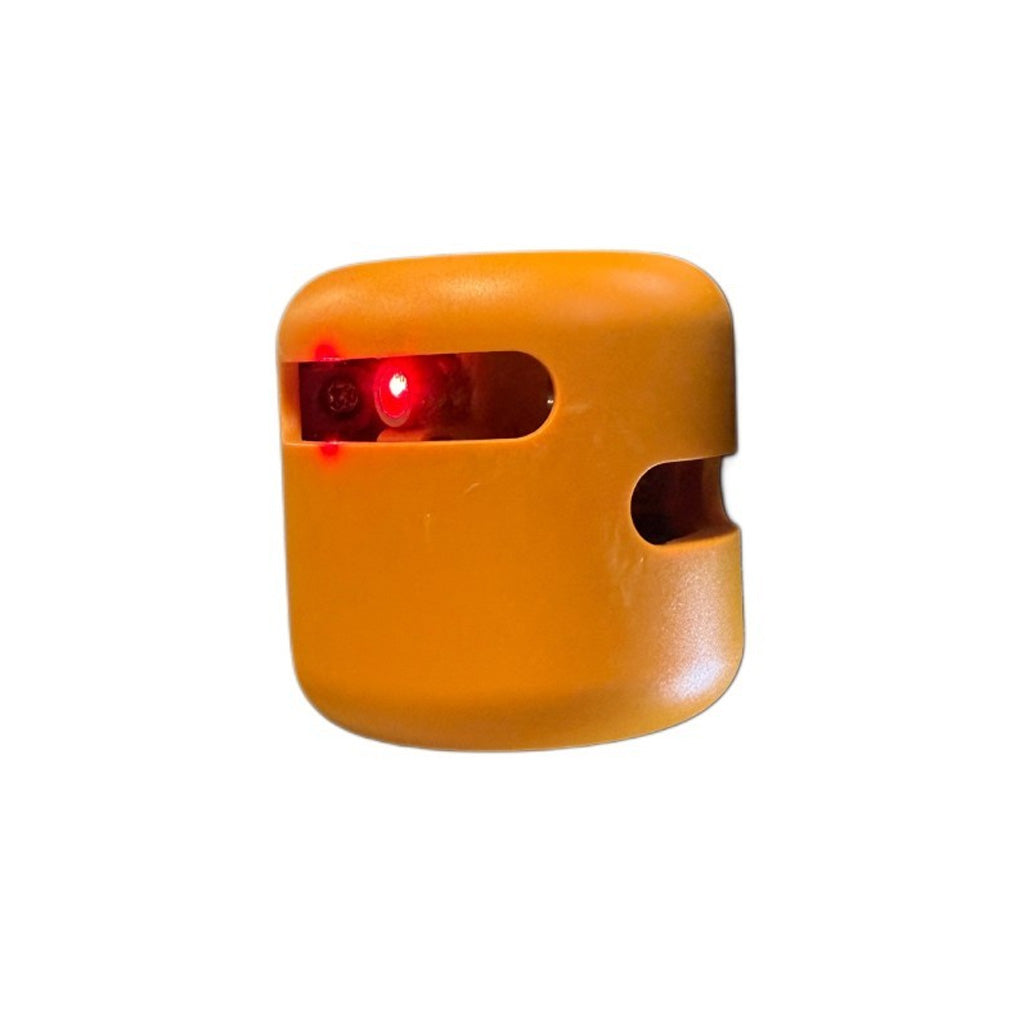

  • SMB25 PRO wheel balancer – detail of a compact dynamic cross-line laser module in an orange housing.
1 8
SMART EQUIPMENT

Wheel Balancer SMART EQUIPMENT SMB25 PRO | Laser/Auto-stop/LED/Sonar

Wheel Balancer SMART EQUIPMENT SMB25 PRO | Laser/Auto-stop/LED/Sonar

Price excl. VAT
7.095,00 zł / pc
Price incl. VAT 23%
8.726,85 zł / pc
EU businesses can order with 0% VAT. During checkout, enter your valid EU VAT ID (VIES) at the payment step.
Shipping cost calculated at checkout.
View full details

Wheel Balancer SMB25 PRO – Professional Balancer with Laser, Sonar and LED

The Wheel Balancer SMB25 PRO by SMART EQUIPMENT is a fully automatic machine featuring a dynamic cross laser, contactless sonar for width measurement, LED rim lighting and an electromagnetic brake with AUTO-SPIN to the imbalance point. Accuracy +/-1 g, spindle 40 mm, 24-month warranty.

Key Features

  • Fully automatic data entry – distance, diameter and rim width measured automatically
  • Dynamic cross laser – precise indication of weight placement position
  • Contactless sonar width measurement – fast and accurate measurement without touching the rim
  • LED rim lighting – excellent visibility during operation
  • Electromagnetic brake with AUTO-SPIN – automatic rotation to the imbalance point
  • Double brake – fast and secure wheel stop
  • Auto-calibration – no periodic calibration required during operation
  • Auto-diagnostics – reading and monitoring of all sensor parameters
  • Aluminium measuring handle – with adhesive weight holder
  • CE certificate
  • 24-month warranty

Work Programmes

  • Dynamic programme for steel rims
  • 4 programmes for alloy (aluminium) rims
  • Static programme for motorcycle wheels
  • Auto-calibration programme
  • Auto-diagnostics programme

Technical Data

ModelSMB25 PRO
Rim diameter10" – 24"
Rim width1.5" – 17.5"
Max. wheel diameter1000 mm
Max. wheel weight65 kg
Accuracy+/-1 g
Balancing time~7 seconds
Max. rotation speed200 rpm
Angle resolution2.8125° (360/128)
Spindle diameter40 mm
Power supply230V, 50 Hz
Power0.2 kW
Clip-on weights mounting12 o'clock position
Adhesive weights mountingper laser indication
Width (with spindle)1008 mm
Depth (with cover)1001 mm
Height (with cover)1550 mm
Weight100 kg
Warranty24 months
ManufacturerSMART EQUIPMENT

Standard Equipment

  • Rim width gauge – 1 pc.
  • Weight removal pliers – 1 pc.
  • Quick-release handle with two covers – 1 pc.
  • Set of 4 centering cones
  • Calibration weight – 1 pc.

Frequently Asked Questions

What does the dynamic cross laser do?

The dynamic cross laser precisely indicates the exact position on the rim where the adhesive weight must be placed, eliminating manual searching and reducing errors, especially with adhesive weights on alloy rims.

How does the contactless sonar measurement work?

The sonar measures rim width without physical contact. Simply bring the measuring arm close – the machine automatically reads the width and feeds the data into the calculation.

Does the machine require regular calibration?

No. The SMB25 PRO features an auto-calibration programme that maintains measurement accuracy throughout its service life without periodic calibration by a service technician.

Can alloy wheels be balanced?

Yes. The SMB25 PRO offers 4 dedicated programmes for alloy rims, covering different adhesive weight positions used on aluminium wheels.

What is the minimum and maximum wheel size supported?

The machine handles rims from 10" to 24" in diameter and 1.5" to 17.5" in width. Maximum wheel diameter 1000 mm, maximum weight 65 kg.
